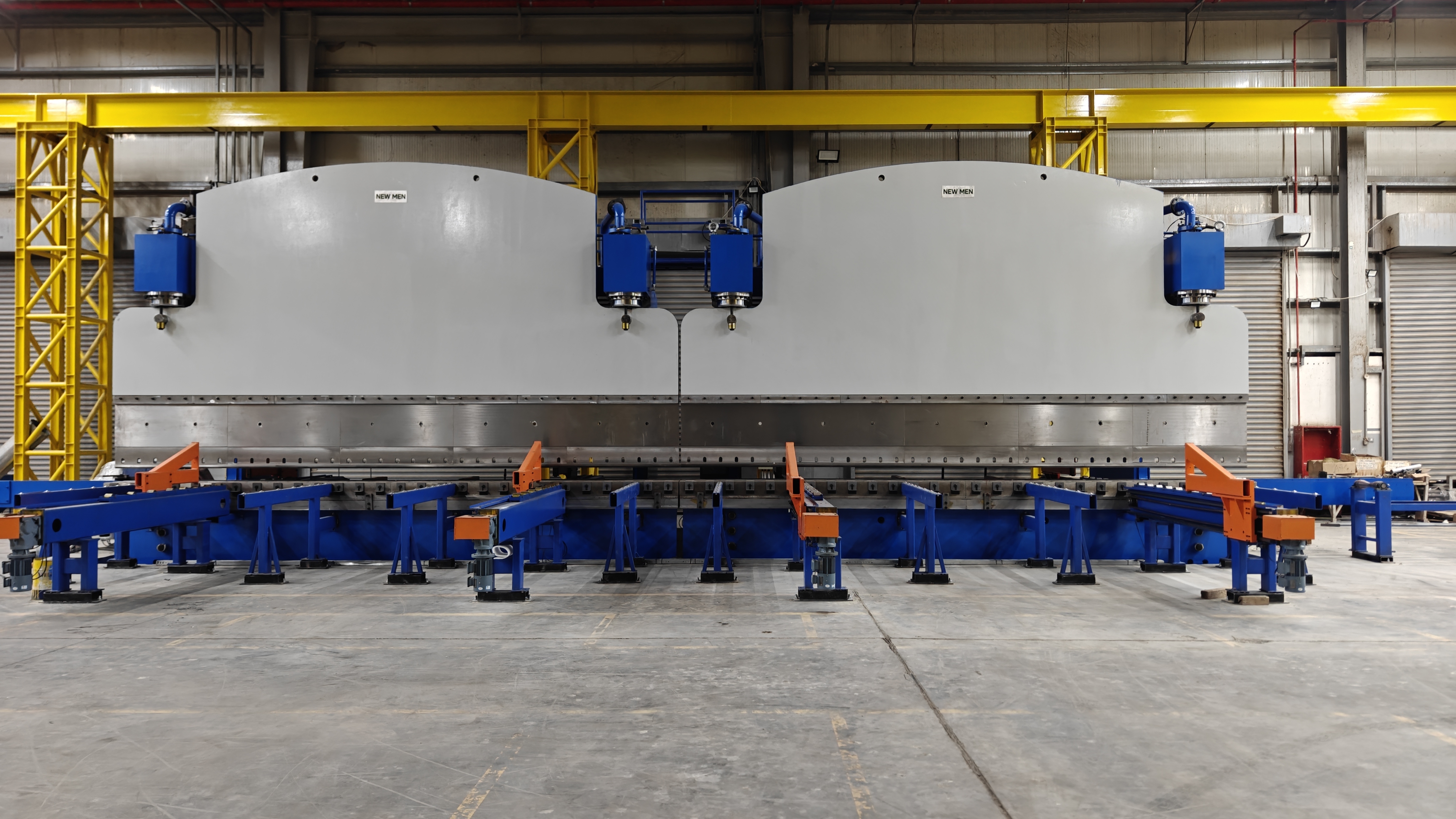

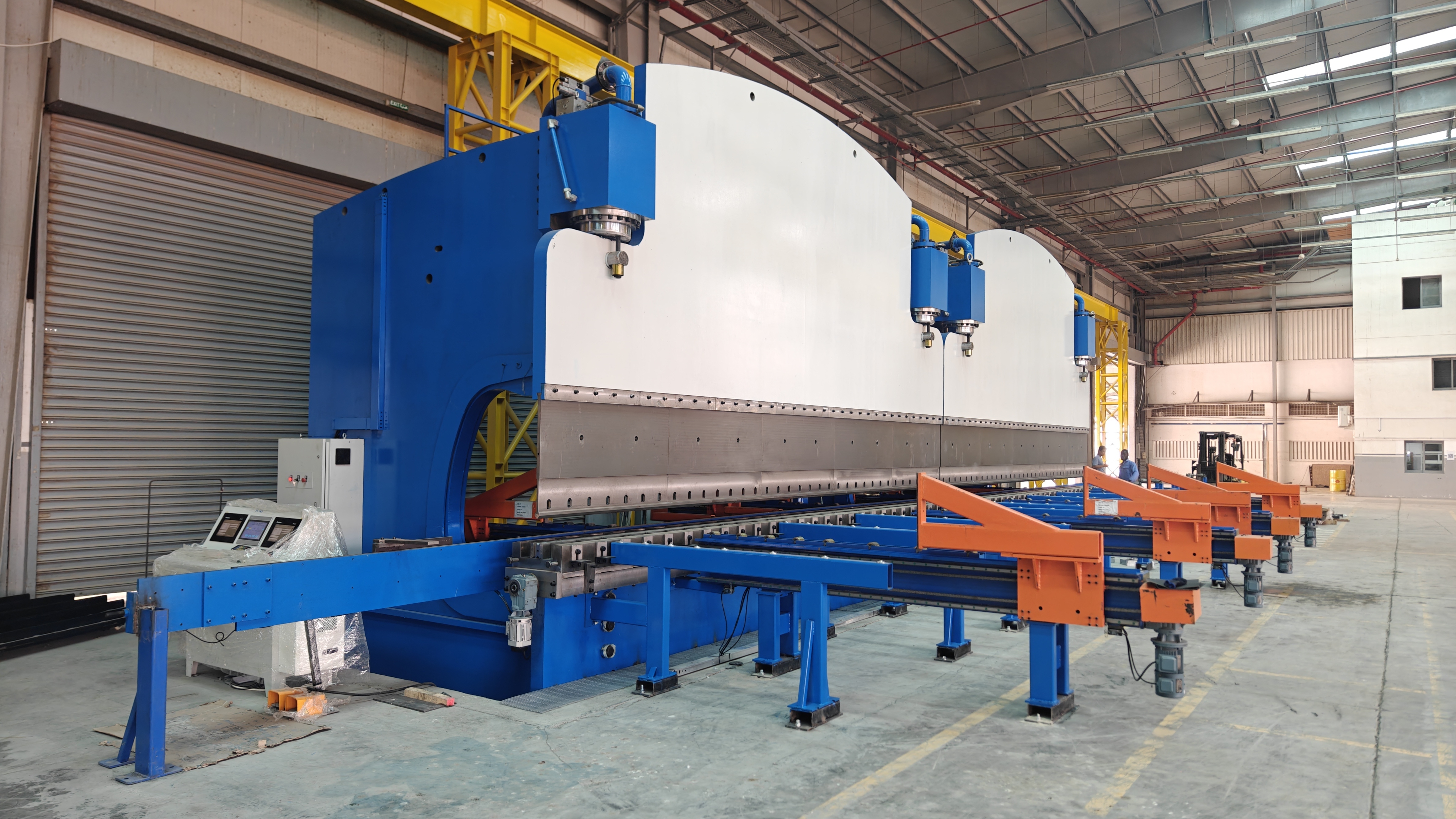

The CNC Tandem Press Brake is a hydraulic synchronized dual-machine bending system designed for continuous forming of large steel plates. It adopts a 2×6000mm structure, enabling one-time bending of workpieces up to 12000mm in length.
The system supports Delem DA-52 / DA-56 / DA-66T CNC controllers, offering options from basic control to advanced graphical programming depending on production requirements. It uses an electro-hydraulic proportional synchronization system combined with grating ruler feedback to ensure stable and precise tandem operation.
| NO. | Name | Value | Unit | Remark |
|---|---|---|---|---|
| 1 | Working force | 2×6000 | KN | |
| 2 | Length of table | 2×6000 | mm | |
| 3 | Distance of column | 4800 | mm | |
| 4 | Throat depth | 1000 | mm | |
| 5 | Open height | 960 | mm | |
| 6 | Stroke | 320 | mm | |
| 7 | Speed of ram slide block | Approach: 70 Working: 7.5 Return: 75 |
mm/s | |
| 8 | Main motor | 2×45 | KW | |
| 9 | Overall dimension | Length: 6080 Width: 4435 Height: 7300 |
mm | |
| 10 | Weight | 2×62000 | kg | |
| 11 | Volume of oil tank | 2×1400 | L |
CNC press brake machines are widely used in large-scale metal sheet forming and fabrication industries. By using different dies, the machine can bend metal plates into various angles and complex shapes.
Typical applications include:
It is used for bending long steel plates in a single continuous process.
Yes, depending on material and tooling configuration.
DA-52: basic 2D control
DA-66T: advanced graphical programming + real-time system + PLC
